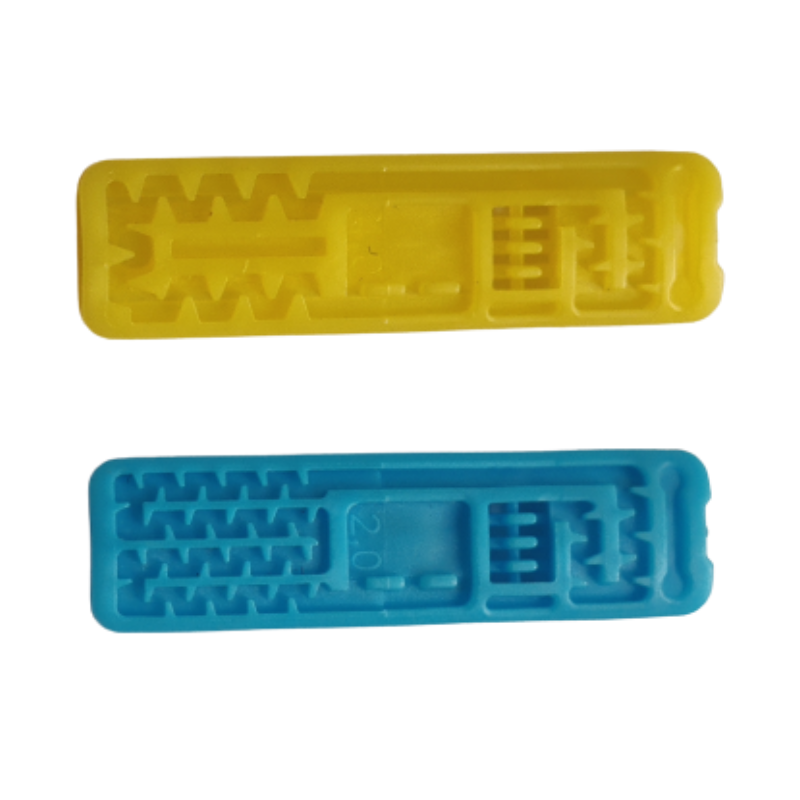

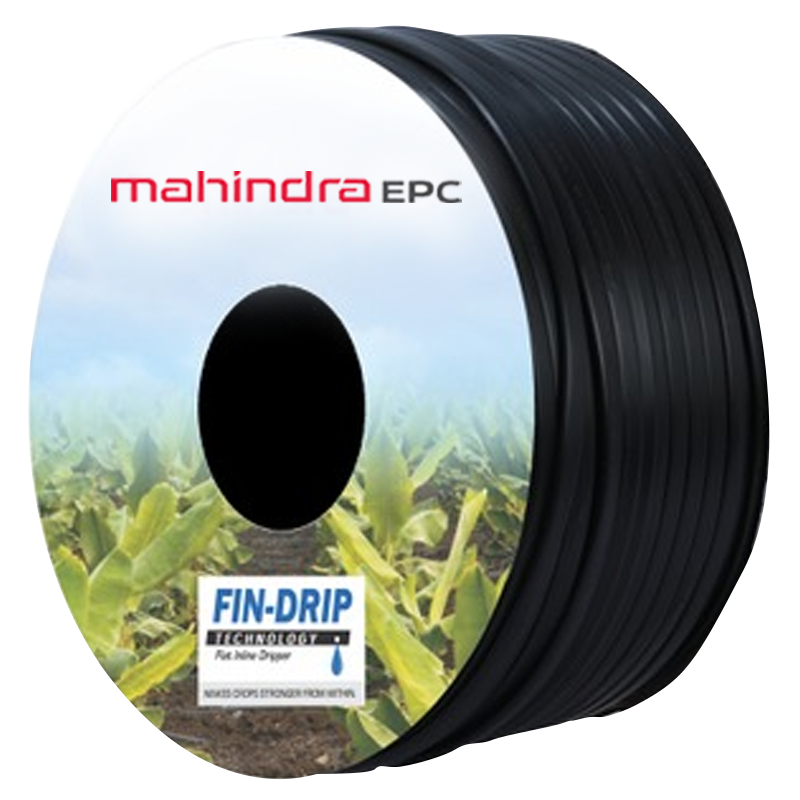

Non-PC Flat Inline (FINDRIP)

Features:

  • Confirming IS:13488
  • Available dripper discharge rates – 2 & 4 LPH
  • Operating Pressure Range: 0.8 – 1.2 Kg / Cm².
  • Available in sizes of 12, 16 & 20 mm.
  • Available emitter spacing 0.30 to 1.50 meters.
  • Available in coils length of 500 meters.

Advantages:

  • Compact emitter design.
  • Non clogging for uninterrupted operation.
  • Special labyrinth design that ensures high turbulency in flow of water.
  • High UV resistant  dripper.

Benefits:

  • Excellent uniformity of water distribution across the field, resulting in uniform growth of the crop.
  • The most popular product that fulfils the irrigation requirement of most of the crops with varied plant spacing and water requirements.

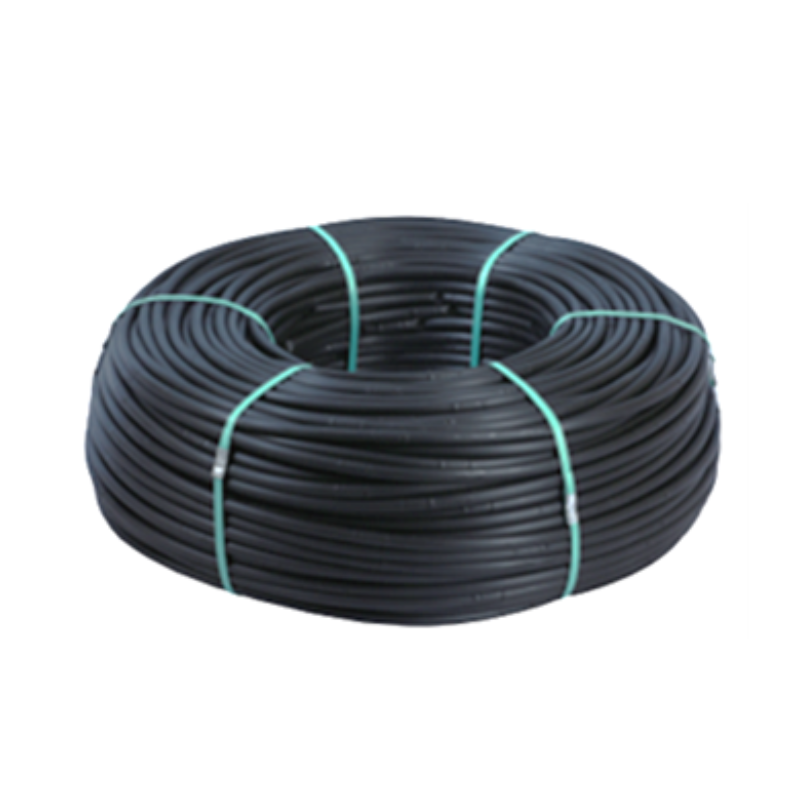

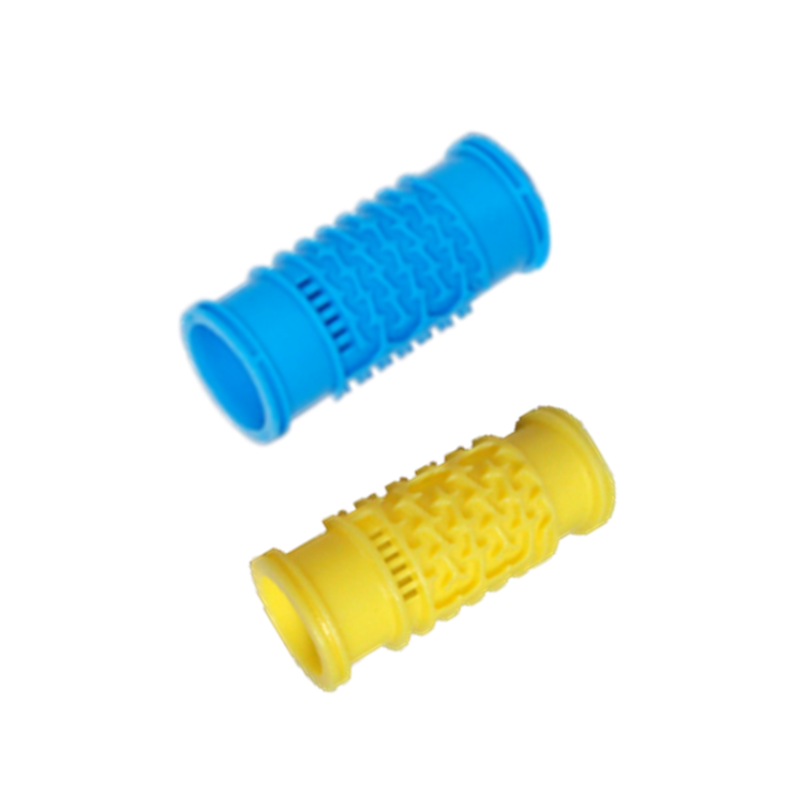

Non-PC Round (Cylindrical) Inline

Features:

  • Product confirming to IS:13488
  • Available dripper discharge rates – 2 & 4 LPH
  • Operating Pressure Range: 0.8 – 1.2 Kg / Cm².
  • Available in sizes of 12 and 16 mm.
  • Emitter spacing 0.30 to 1.50 meters to suit all crops.
  • Available in coils of 500 meters (12mm) and 400 meters (16mm).

Advantages:

  • Double inlet filter & outlet holes ensure clog-free operation for longer periods.
  • Turbulent water labyrinth ensures clog resistance.
  • High UV resistant  dripper.

Benefits:

  • Compact emitter design ensures ease in recoiling the line when not in use.
  • Excellent uniformity of water distribution across the field, resulting in uniform growth of the crop.
  • A robust product that fulfils the irrigation requirement of most of the crops having varied plant spacing and water requirements.

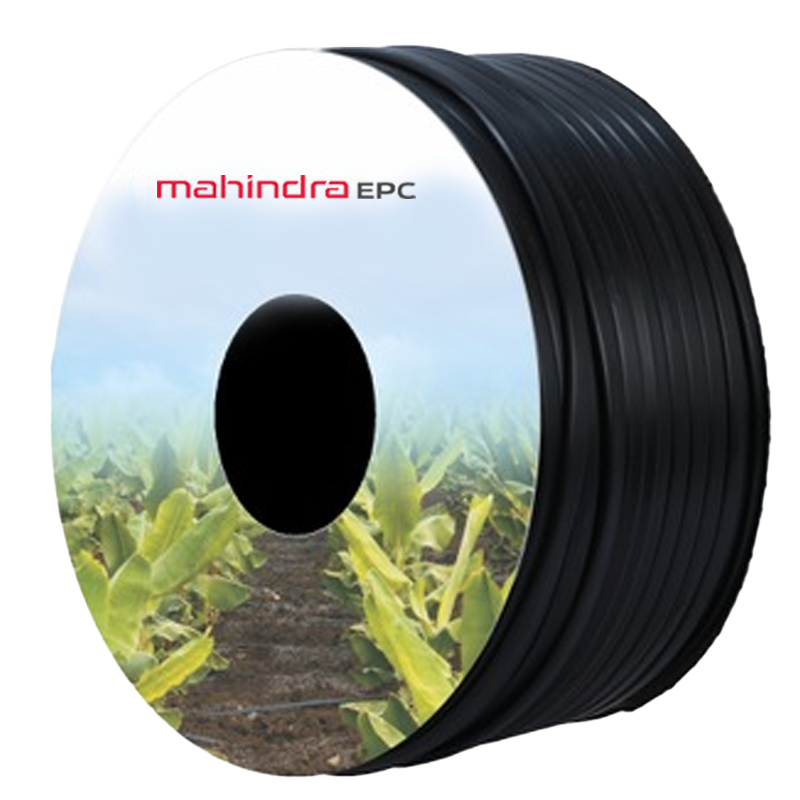

PC (Pressure Compensating) Flat Inline

Features:

  • Available in 16 and 20 mm with discharge rates of 1.6, 2.4 & 4 LPH.
  • PC and PCND feature available in 2.4 LPH.
  • Operating Pressure Range (0.75-3.5 kg/cm²)
  • Large turbulent flow path.
  • Highest quality plastic and silicone diaphragm.
  • Reliable performance in the toughest conditions.

Advantages:

  • Self-flushing mechanism flushes at every start-up ensuring long operational life..
  • Ideal for irrigating crops on undulated topography, maintaining water discharge uniformity across the field.

Benefits:

  • Longer lateral lengths mean lower cost of the system.
  • Uniform discharge in undulated topography
  • Most versatile product that fulfils the irrigation requirement in challenging conditions of undulated topography for most crops.

LITE Inline

Features:

  • Made from high grade PE material.

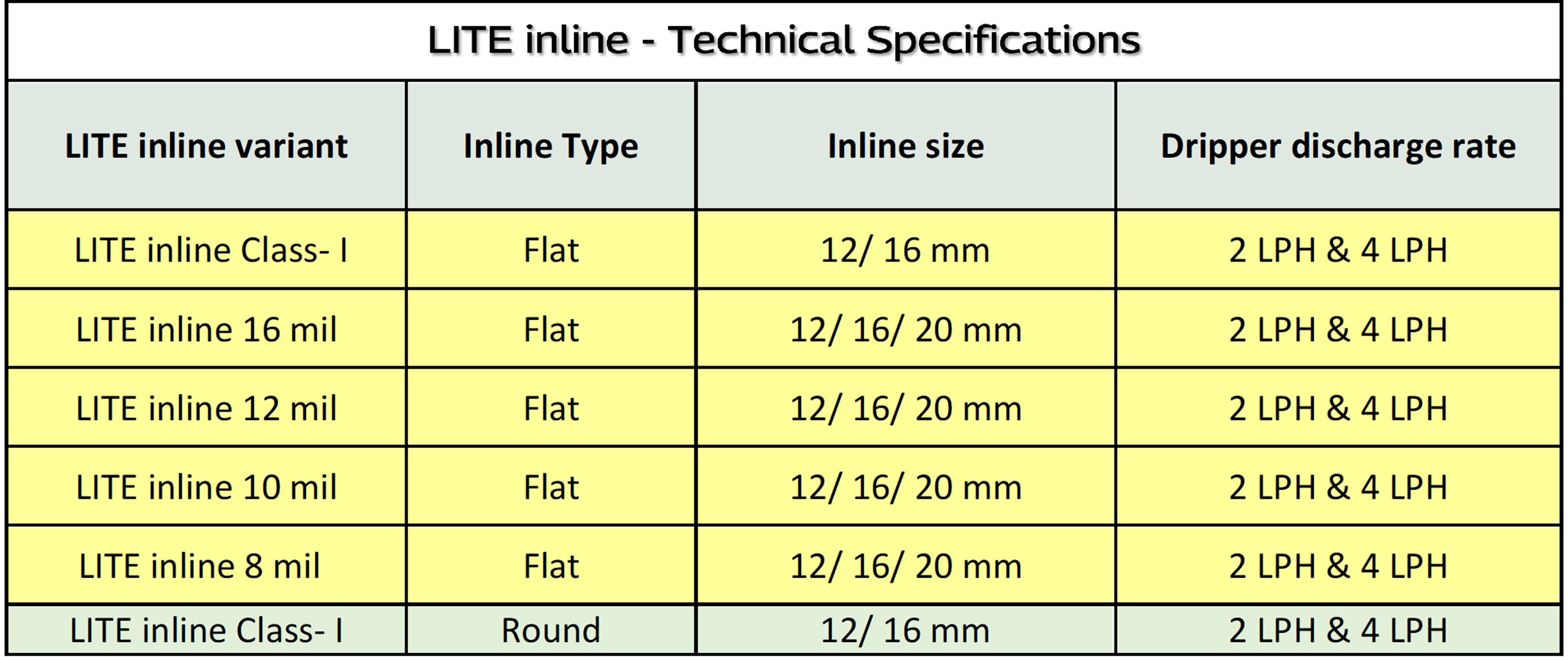

  • Available in in following specifications:

Advantages:

  • Compact emitter design, Resistant to clogging.
  • Suitable for pressurized and gravity fed irrigation systems.

Benefits:

  • Very economical inline laterals.
  • Product thickness can be selected as per the requirement.
  • Suitable for all row crops.
