Primary filters

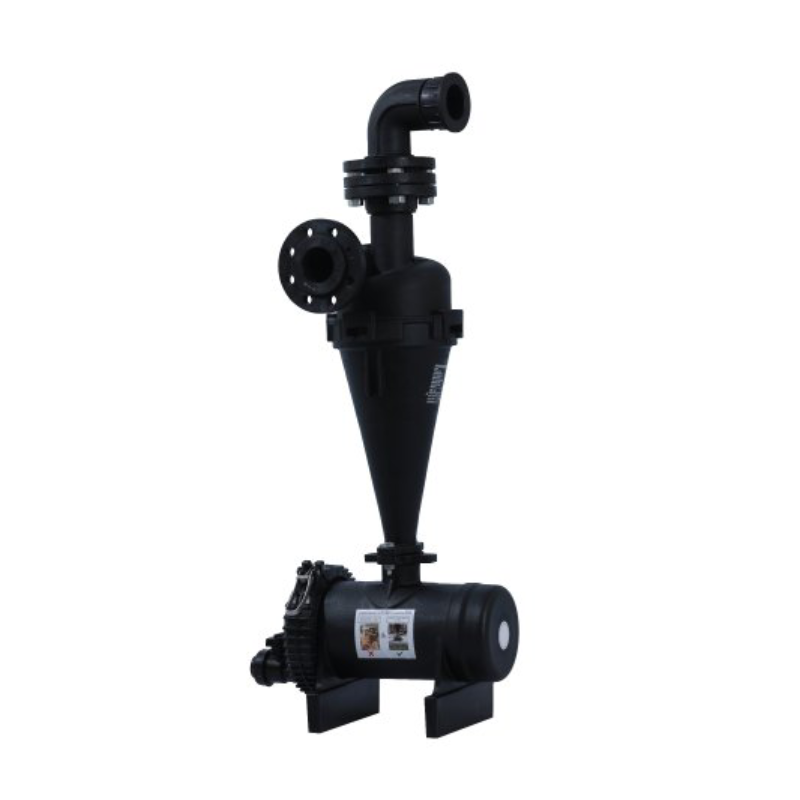

Plastic Hydro-cyclone Filter

  • Hydrodynamically designed to create maximum centrifugal action.
  • Connection size: 2”, 2.5” & 3”.
  • Specially designed reinforcement at the bottom of cone to avoid wear due to strong sand vortex.
  • No corrosion and rusting problems.
  • Easy to carry and install.
  • Comes with flanged PP bend for accuracy in installation.

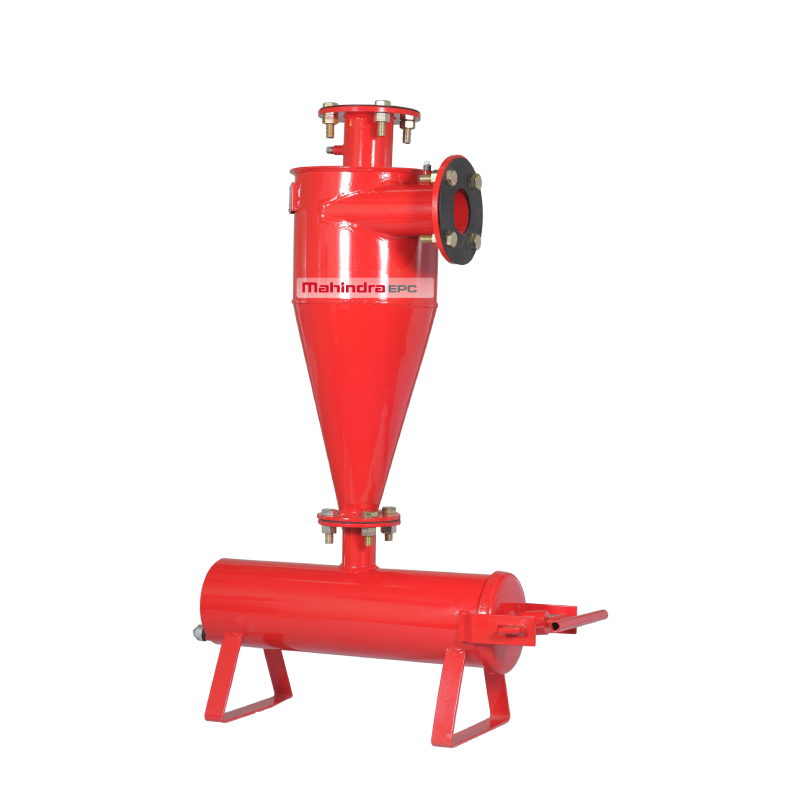

Hydro-cyclone Filter (Metallic)

  • Connection size: 2”, 2.5” & 3”.
  • Available with flow Capacities 10 to 50 M3/Hr.
  • Very effective for segregation of sand from sand yielding bore wells.
  • Also useful for open-wells, ponds, canals, rivers etc. to separate heavier water borne debris.
  • Simple construction without filter element hence
  • Easy to clean and maintain.

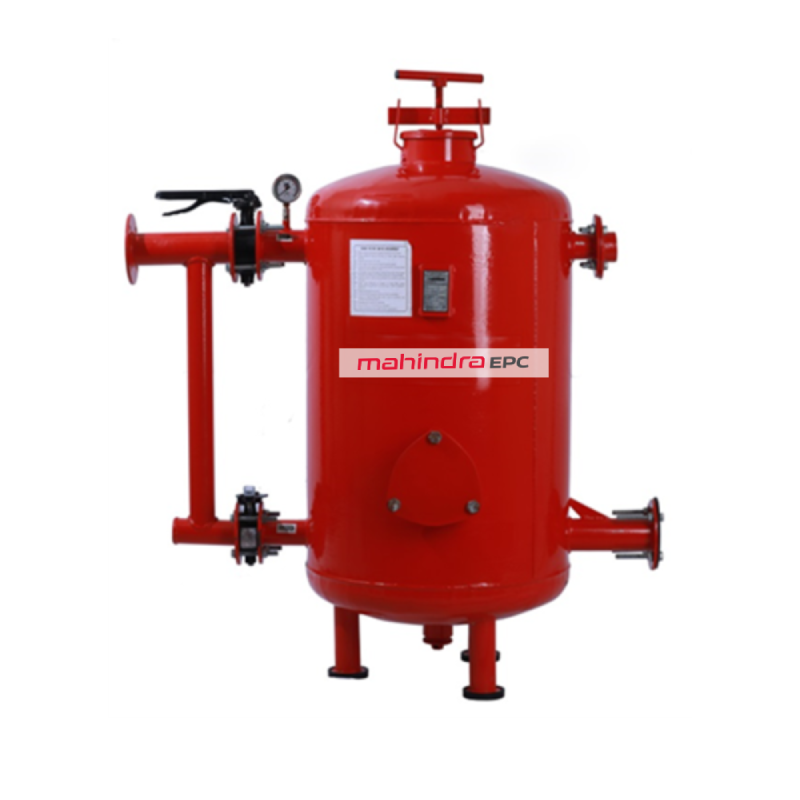

Vertical Sand Filter (VSF)

  • Available in flanged connection sizes of 2”, 2.5”, 3”.
  • Available with flow Capacities of 10 – 50 m3/hr.
  • Requires less space to install.
  • Better filtration efficiency due to increased height of sand.
  • Metallic back flush assembly.
  • Manholes for easy inspection and maintenance.

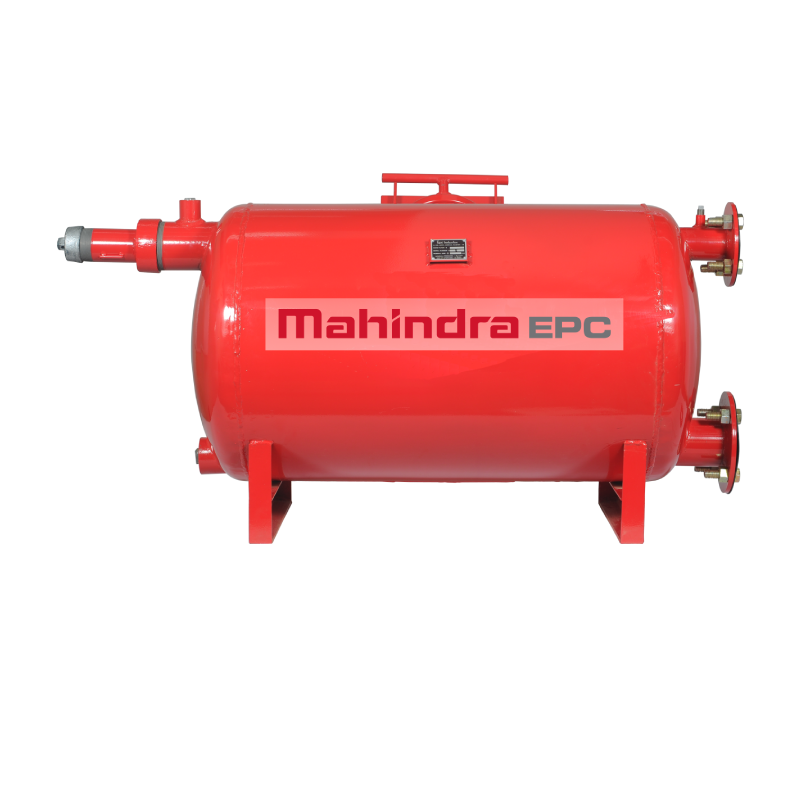

Horizontal Sand Filter

  • Flanged connection sizes: 2”, 2.5”, 3”.
  • Available with flow Capacities 10 to 50 m3/hr.
  • Quartz sand is used to filter out organic impurities owing to its sharp edges and hardness.
  • Large filtration area results in low head loss.
  • Due to low in height it is easy to do maintenance work inside.
  • SS mesh screen element prevents sand particles coming out of outlet of filter.
  • Very effective for filtration of organic matter like algae, plant/insect fragments etc.

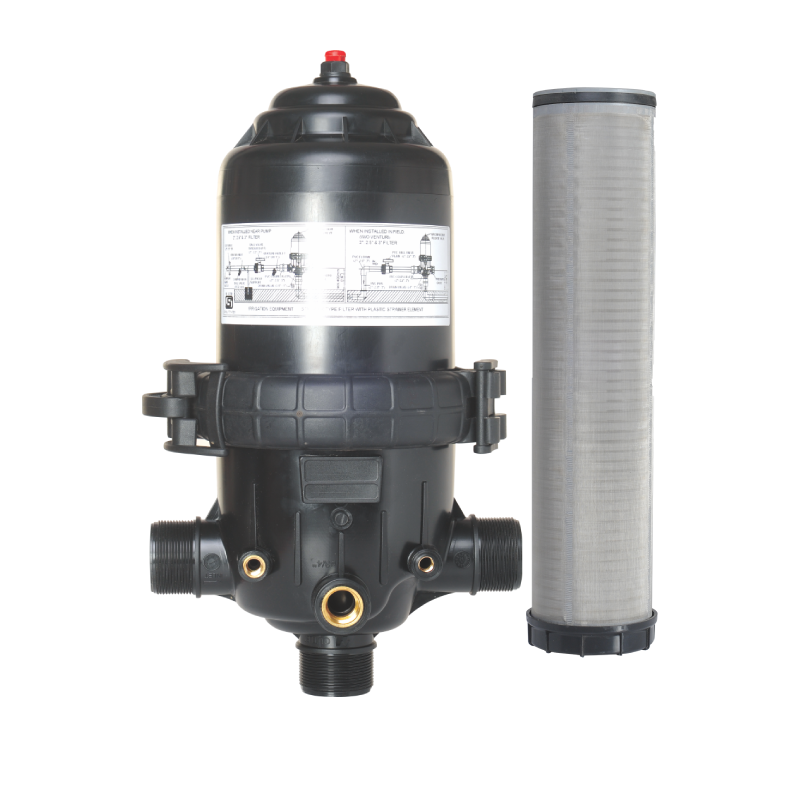

Screen Filter (Plastic shell)

  • Flow capacities – 10 to 50 m3/hr.
  • Degree of filtration – 100 & 200 microns.
  • Connection Sizes – 2”, 2.5” & 3”
  • Very easy to dismantle & clean.
  • Interchangeability between disc and screen options.
  • No corrosion due to chemicals.

Secondary filters

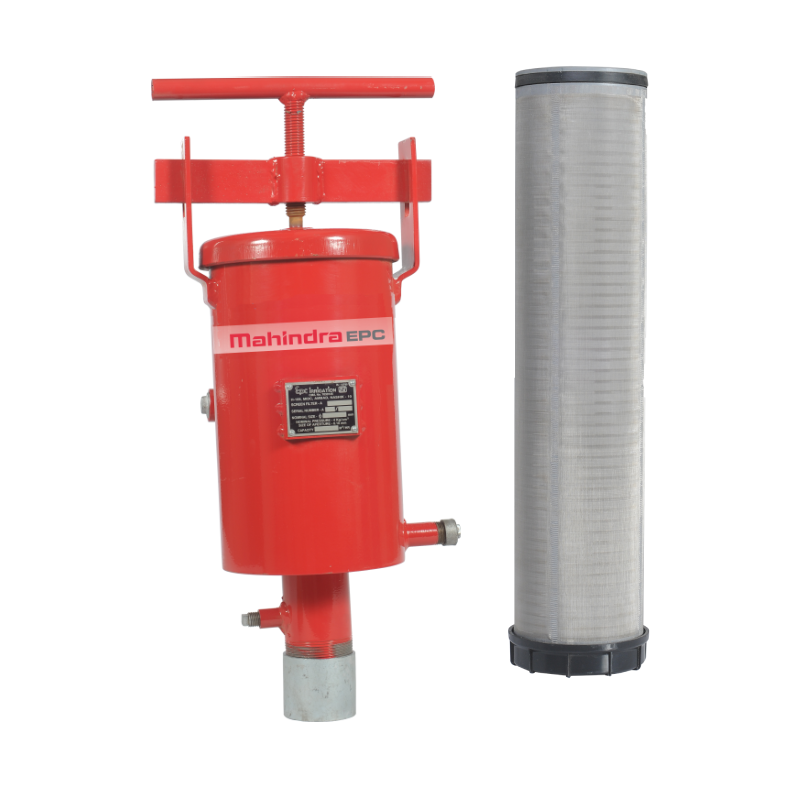

Screen Filter (Metal shell)

  • Flow capacities – 10 to 50 m3/hr.
  • Degree of filtration – 100 & 130 microns.
  • Available Connection Sizes – 2”, 2.5” & 3”
  • Very easy to dismantle & clean.

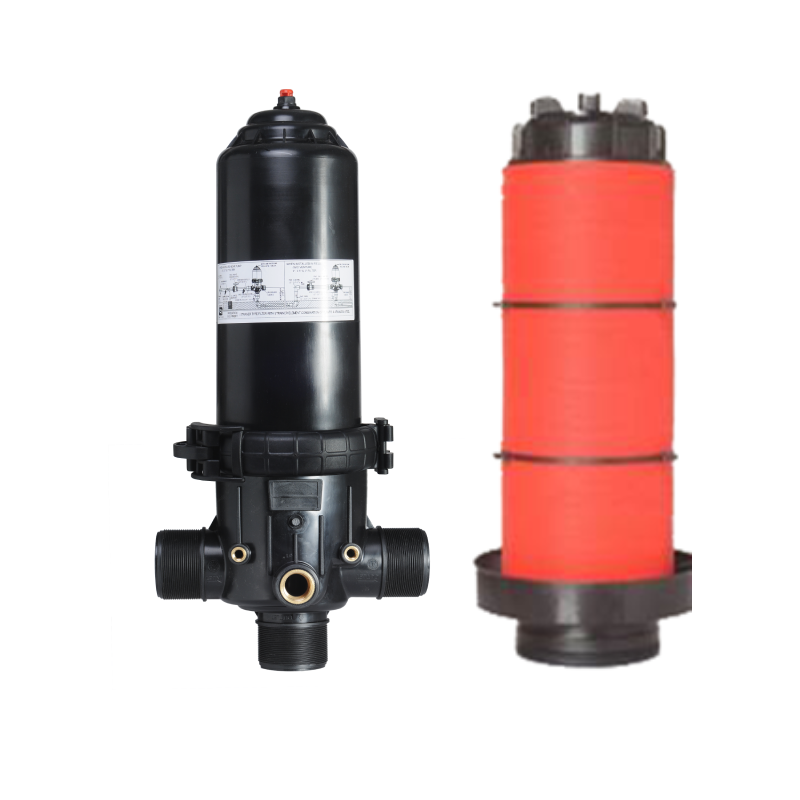

Disc Filter

  • Available in plastic shell.
  • Flow capacities – 10 to 50 m3/hr.
  • Connection Sizes – 2”, 2.5” & 3”
  • Degree of filtration – 130 microns.
  • Very easy to dismantle & clean.
  • Robust & higher filtration efficiency.
  • Helix ring prevents clogging of filtration area during operation.
  • Interchangeability between disc and screen options.

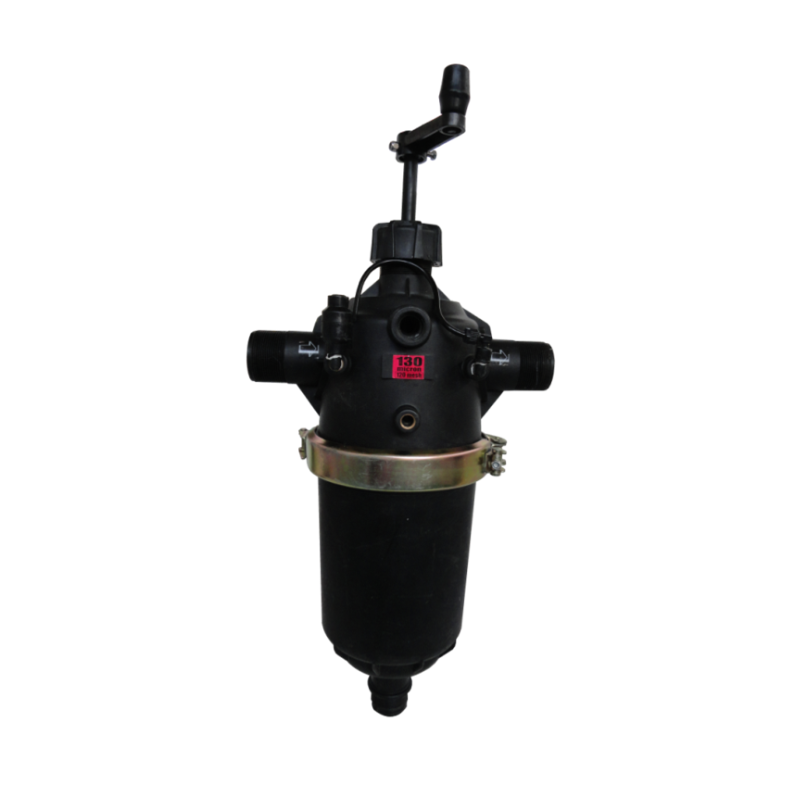

Semi-automatic screen Filter (Plastic shell)

  • Flow capacities – up to 42 m3/hr.
  • Degree of filtration – 120 mesh.
  • Connection Sizes – 2”, 2.5” & 3”
  • No corrosion due to chemicals.
  • No need of frequent/ daily opening for cleaning required.
  • More suitable for areas with low quality water where frequent cleaning is needed.
  • Filter cleaning in operation enhances operating time.
  • Pressure differential indicator is provided which indicates the choking of screen filter.
  • Handle is provided to the filter for flushing purpose in operating condition.
  • When filter chokes the pressure differential indicator will pop up & RED mark will be visible that indicates filter needs flushing.
  • To flush, just open the drain valve and rotate the handle clockwise & anti clock wise. Repeat the same process till the indicator comes down to its normal position.

Header unit

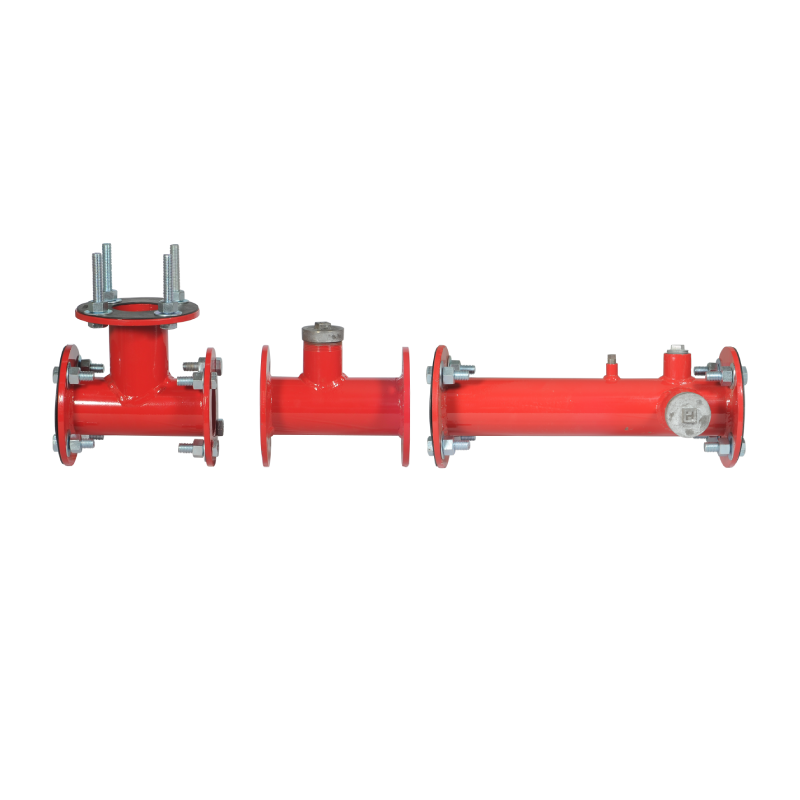

Metallic Header Assembly

  • Header assembly is used in control head unit (filter unit).
  • Provision for fixing butterfly valve and ports for ventury and pressure gauge.
  • Additional ports of 1” & 2” sizes.
  • Available in 2”, 2.5” and 3.0” sizes

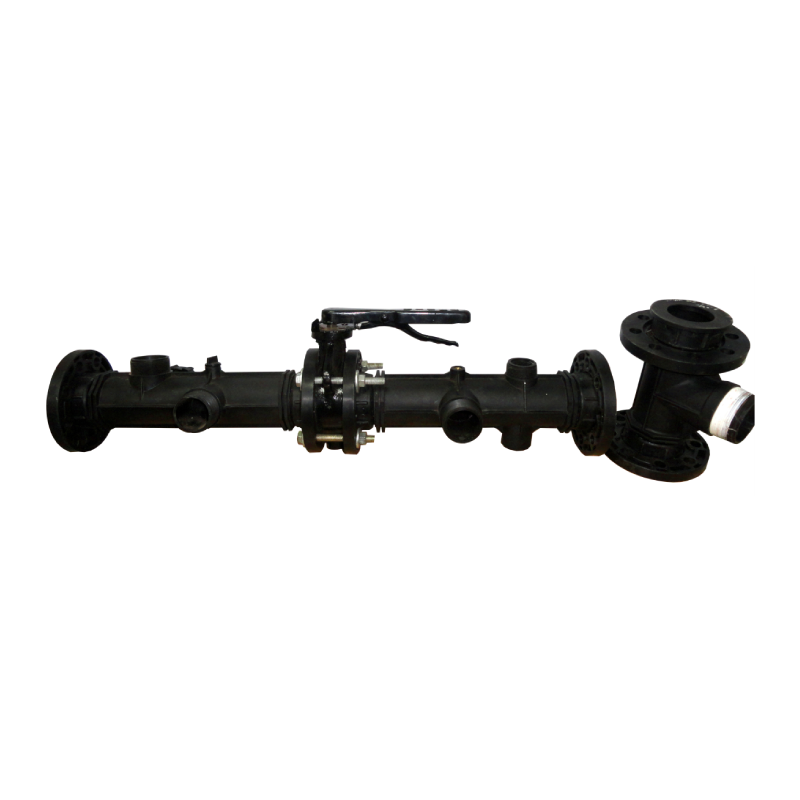

Plastic Header Assembly

  • No rusting and erosion problems.
  • Complete unit with butterfly valve.
  • Ports for ¾” and 2” ventury fitting and pressure gauges.
  • Additional ports of  2” sizes.
  • Available in 2”, 2.5” and 3.0” sizes.

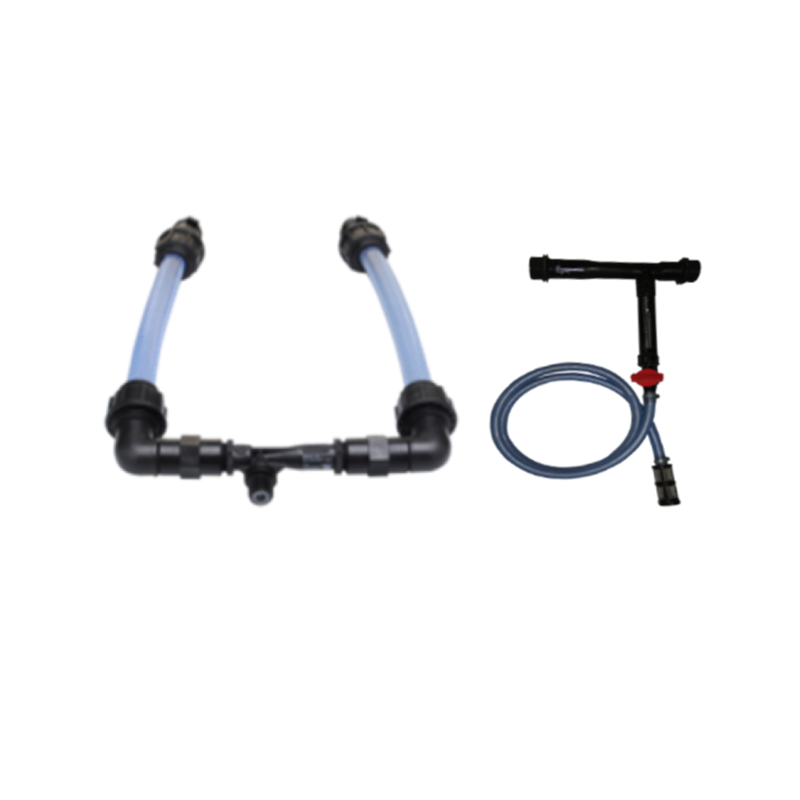

Ventury

Ventury

  • Available in ¾”, 1” and 2” sizes.
  • Easy to operate and maintain.
  • No need of additional power source.
  • Easy to adjust injection rate.
  • Made of high grade plastic for long operational life.
  • Equipped with NRV’s.

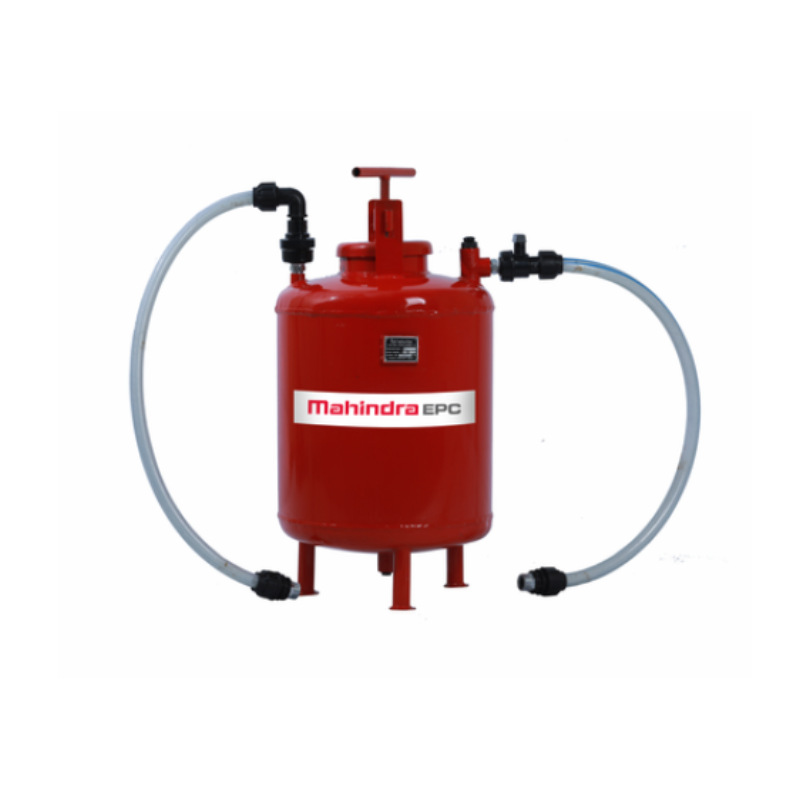

Fertilizer tank

  • Available in 30, 60, 90 litres capacity
  • MS casing with epoxy powder coating
  • Compression fittings for ease in installation and service.

Control valves

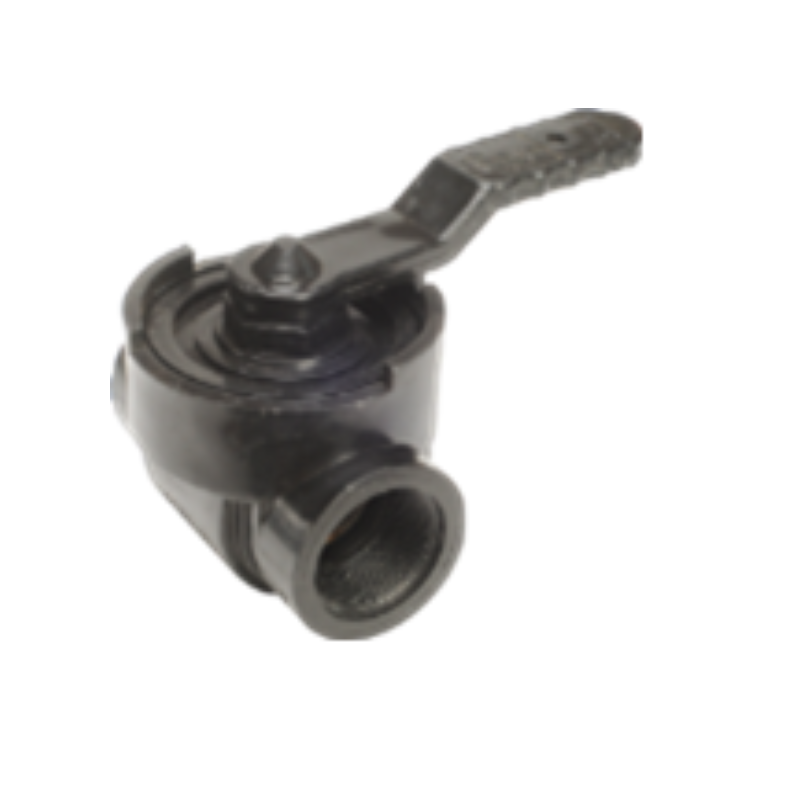

PP Ball Valves

  • Available in sizes of 40, 50, 63, 75, 90 mm.
  • Connection type – Threaded, Flanged or plain.
  • Single piece robust body.
  • Recommended for use as sectional flow control valve.

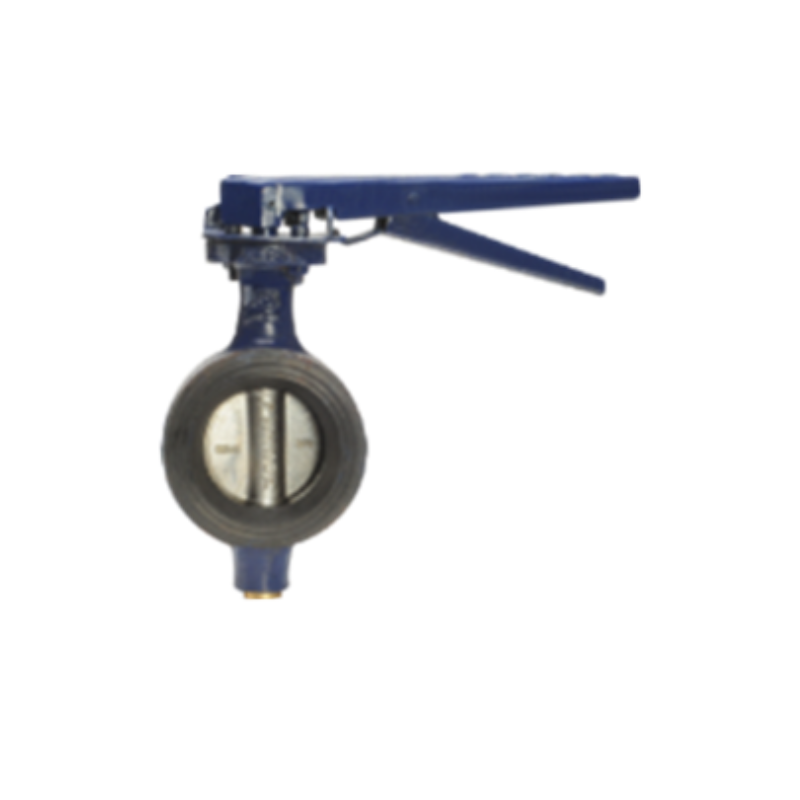

Butterfly Valve

  • Available in sizes 2”, 2.5”, 3”.
  • Can be opened and closed quickly.
  • The locking mechanism ensures no accidental operation.
  • Less space is required in comparison to other types of valves.

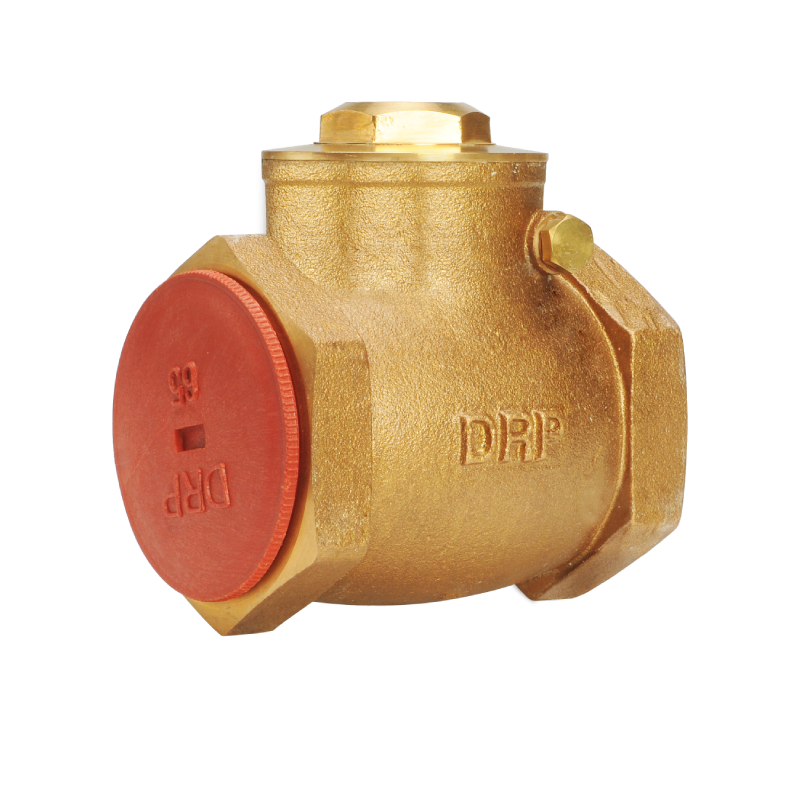

Non Return Valve

  • Available sizes 1.5”, 2”, 2.5”, 3”.
  • Available in gunmetal, CI, and PP material.
  • Must protect pump and drip systems from damage due to flow reversal.

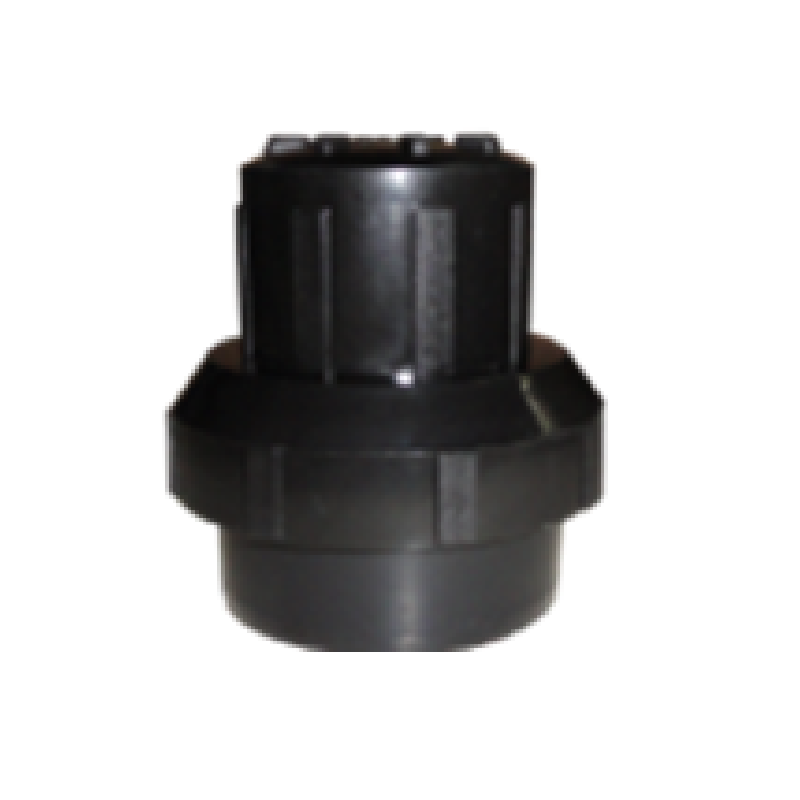

PP Flush Valve

  • Available sizes 40, 50, 63, 75 mm
  • Very useful and convenient in sub-main flushing.
  • Easy to install and service.
  • Economical in comparison to ball valves.

Safety valves

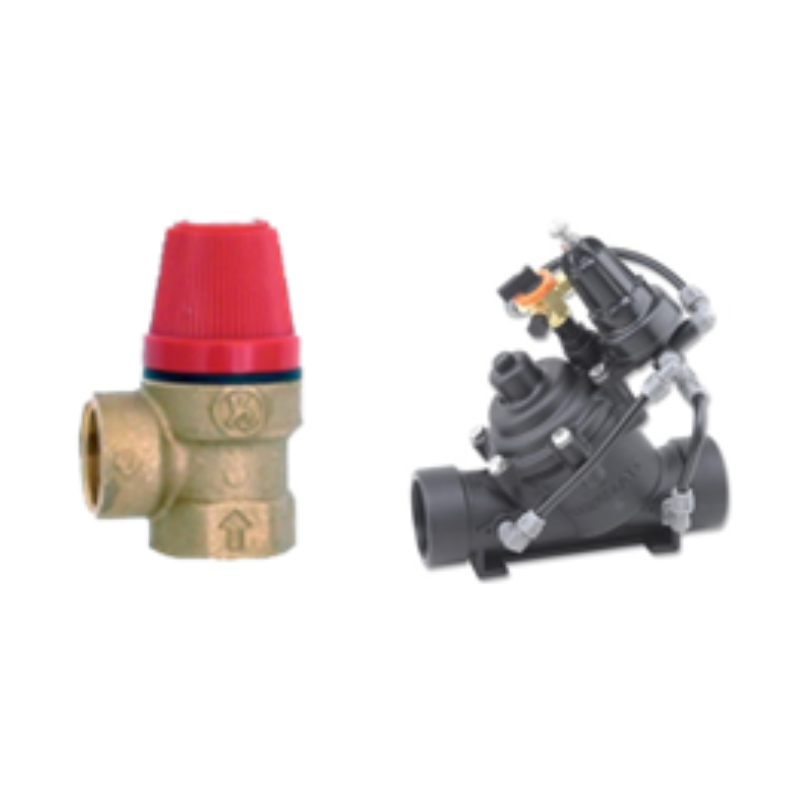

Pressure Relief Valve

  • Available sizes 1.5”, 2”, 2.5”, 3”
  • Available in mechanical and hydraulic models.
  • Protects pump and system in case of pressure surges.
  • Automatic operation.
  • Very useful in large installations.

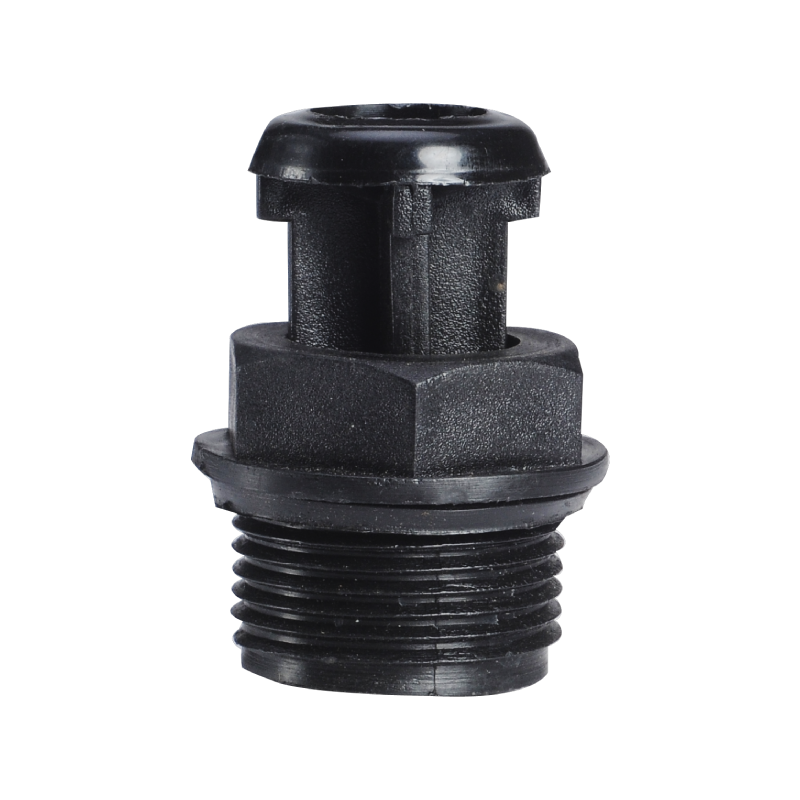

Vacuum breaker Valve

  • Available sizes 0.5”, 0.75”.
  • Protects vacuum creation in filters and pipes.
  • Widely used in case of subsurface installations.
  • Small but very crucial safety component.

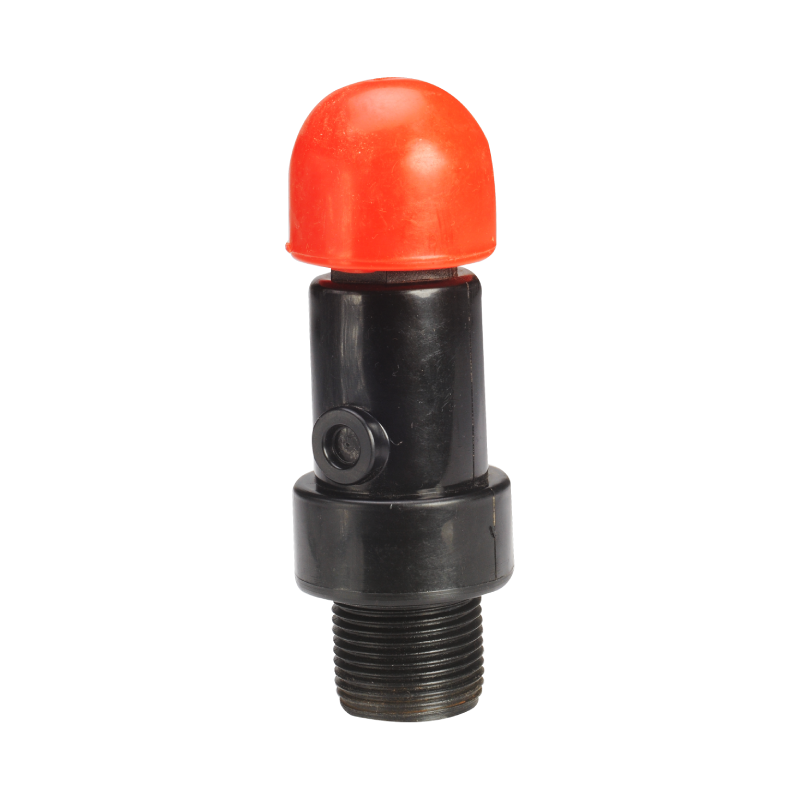

Air Release Valve

  • Available sizes 0.5”, 0.75”, 1”, 1.5”, 2”.
  • Used to release the air in lines to protect from air locks.
  • Mainly used at head unit and main lines.

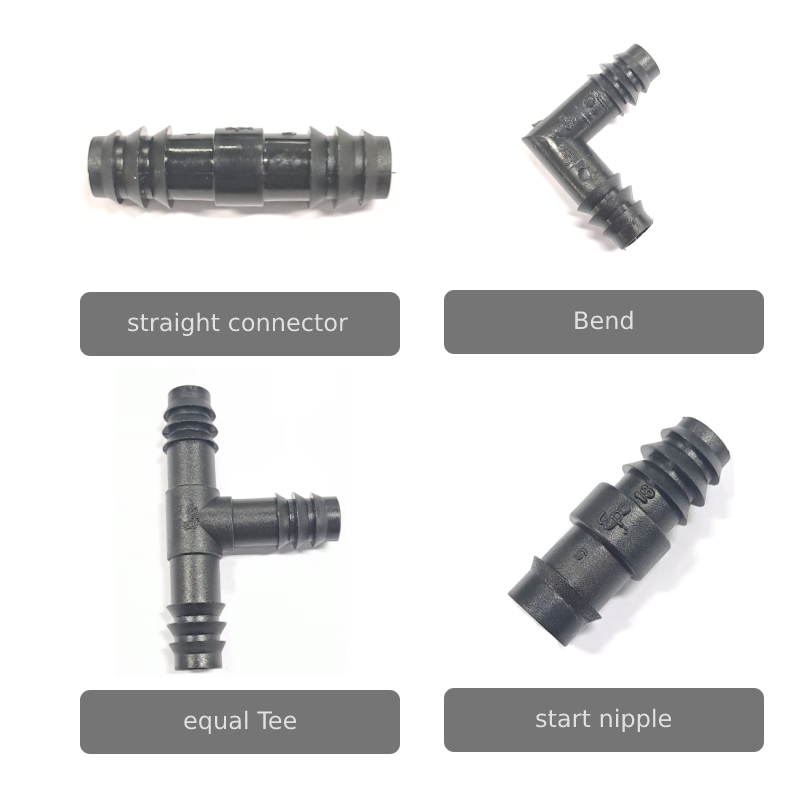

Aquafit Laterals accessories

Features:

  • Made from special grade plastic.
  • Available sizes: 12, 16 & 20 mm.
  • Excellent locking properties.

Advantages:

  • Protected from UV degradation to enhance life.
  • Leak proof joints even at high pressures.

Benefits:

  • Suitable for all types of drip installations.
  • Suitable for green house applications.
  • No loss of pressure due to leakage
